Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING .")

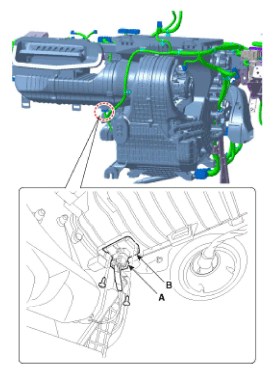

  3. Disconnect the connector (A) and then remove the field effect transistor (B) after loosening the mounting screws.
    G11952904Courtesy of
  4. Install in the reverse order of removal.
