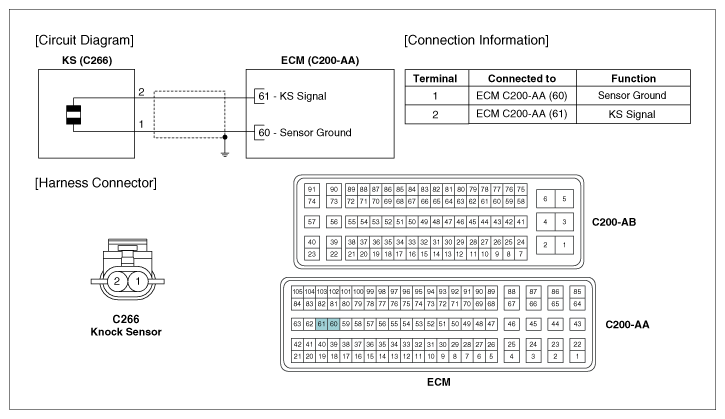

Circuit Diagram: (A/T)

Fig 1: Knock Sensor Connector (A/T)

G11955526

Courtesy of KIA MOTORS AMERICA, INC.
