Circuit Diagram: (A/T)

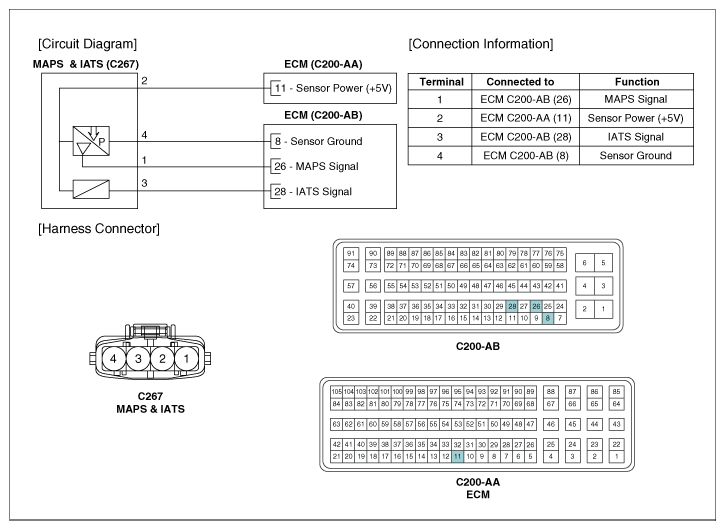

Fig 1: Manifold Absolute Pressure Sensor Connector (A/T)

G11955496

Courtesy of KIA MOTORS AMERICA, INC.
