Components And Components Location: Components

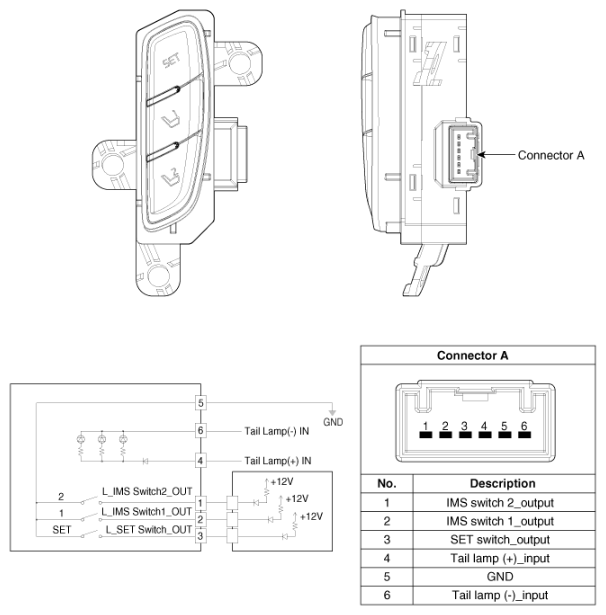

Fig 1: IMS Control Switch Circuit Diagram
G11866720Courtesy of KIA MOTORS AMERICA, INC.
