Download Parameter

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Select "AFLS" menu after selecting a vehicle.

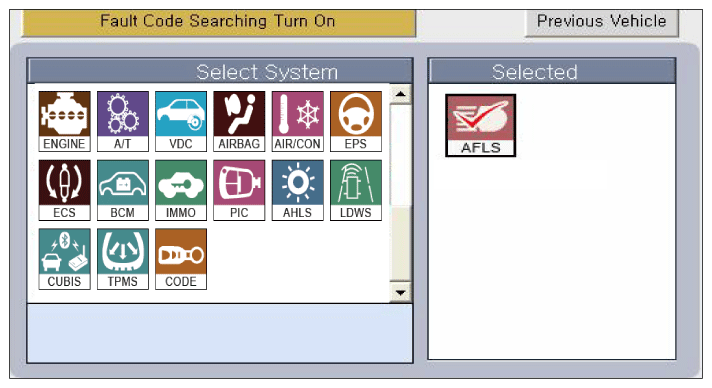

Fig 1: Screen Display - AFLS Menu
Courtesy of KIA MOTORS AMERICA, INC.
Select "Parameter download" menu for define a characteristic of vehicle.

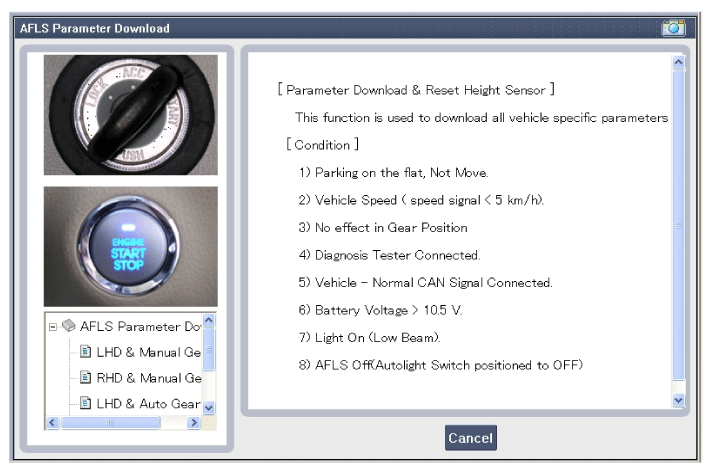

Fig 2: Screen Display - Parameter Download
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Parameter Download And Reset Height Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Select the LHD/RHD and MT/AT option proceed to the vehicle options.

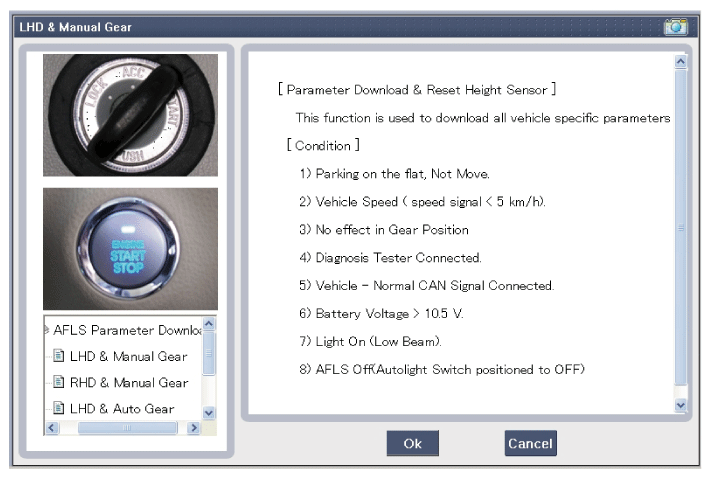

Fig 4: Screen Display - LHD And Manual Gear
Courtesy of KIA MOTORS AMERICA, INC.
When "Parameter download" is done, display below.

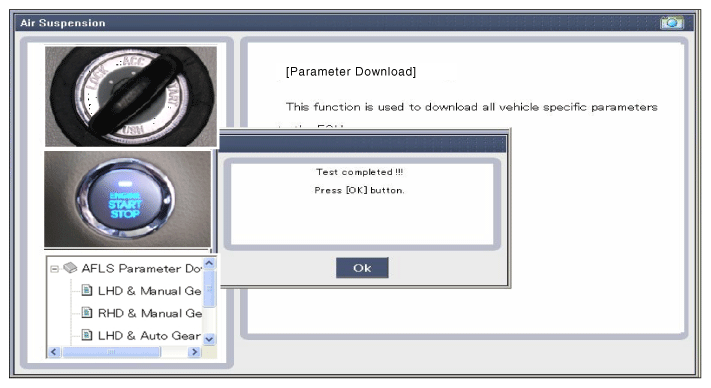

Fig 5: Screen Display - Test Completed
Courtesy of KIA MOTORS AMERICA, INC.
