Components and Components Location: Components

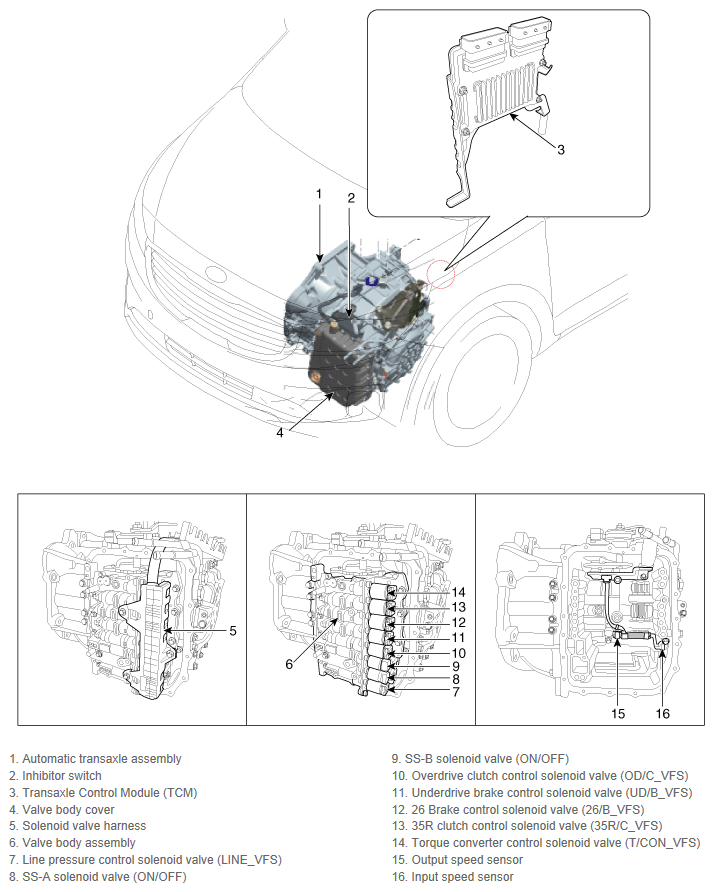

Fig 1: Locating Automatic Transaxle Control System Components (1 Of 2)
G11856804Courtesy of KIA MOTORS AMERICA, INC.

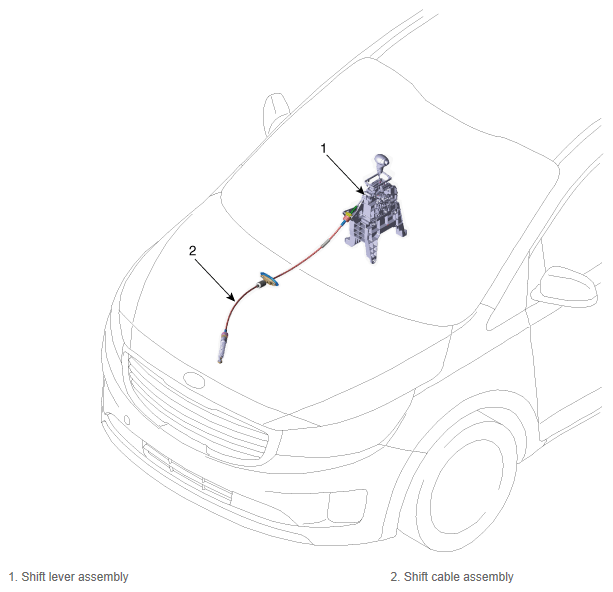

Fig 2: Locating Automatic Transaxle Control System Components (2 Of 2)
G11856805Courtesy of KIA MOTORS AMERICA, INC.
