Components and Components Location: Components

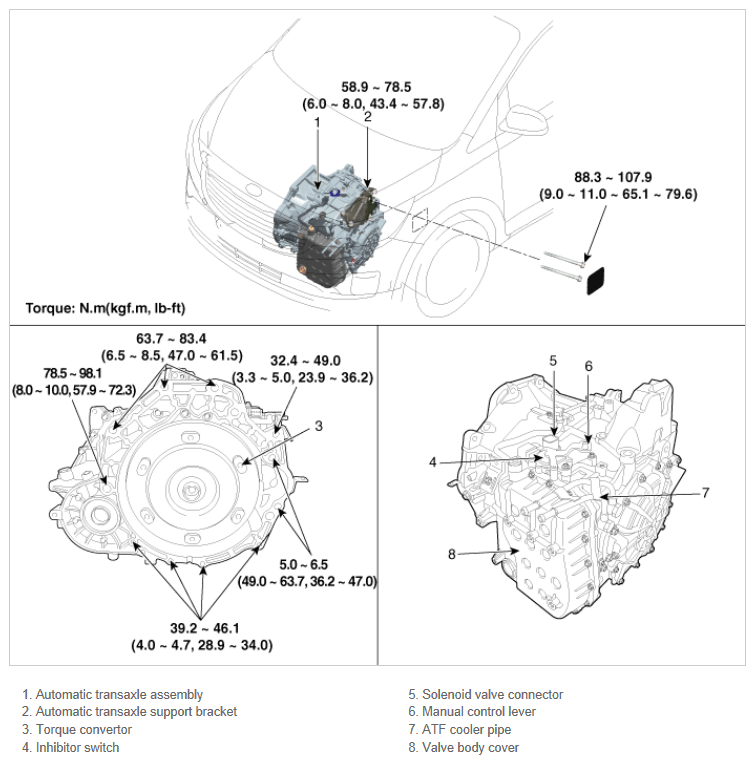

Fig 1: Locating Automatic Transaxle System Components With Torque Specification
G11857006Courtesy of KIA MOTORS AMERICA, INC.
