Circuit Diagram

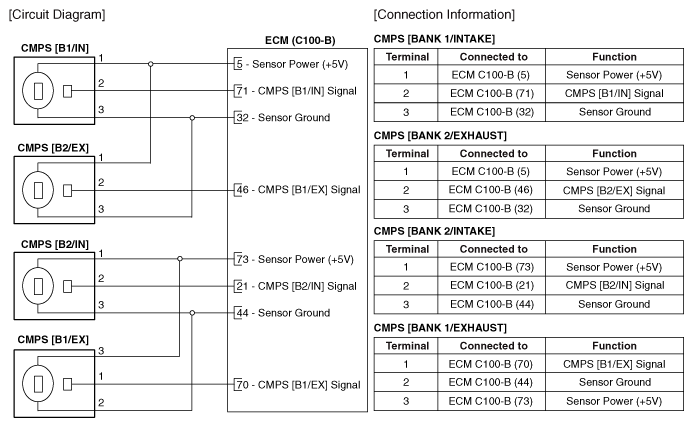

Fig 1: Camshaft Position Sensor And ECM Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
