Rear Power Window Switch

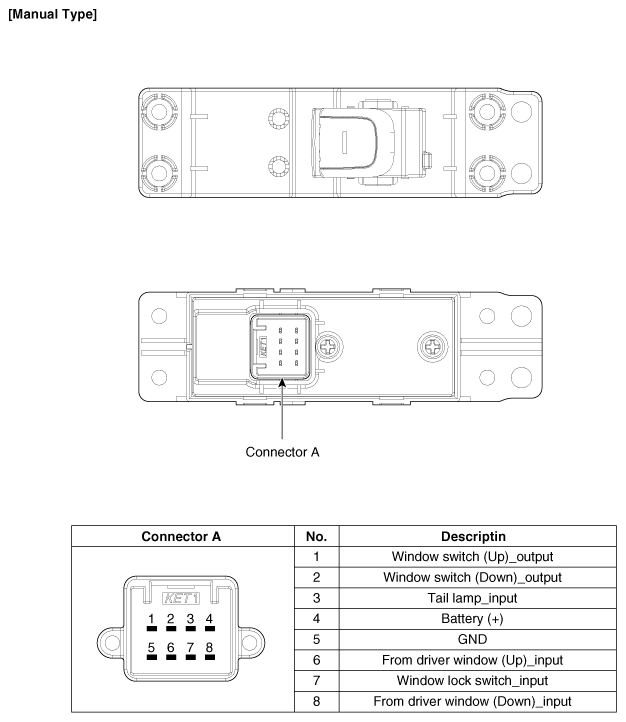

Fig 1: Locating Rear Power Window Switch Connector Terminals (Manual Type)
Courtesy of KIA MOTORS AMERICA, INC.

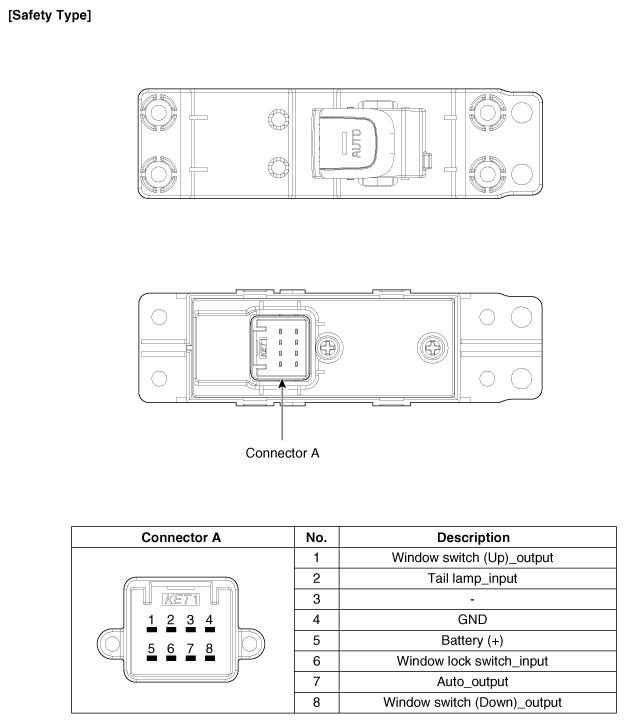

Fig 2: Locating Rear Power Window Switch Connector Terminals (Safety Type)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
