Button Engine Start System (HEV)
>>
Button Engine Start System
>>
Schematic Diagrams
>>
Circuit Diagram (1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram (1)

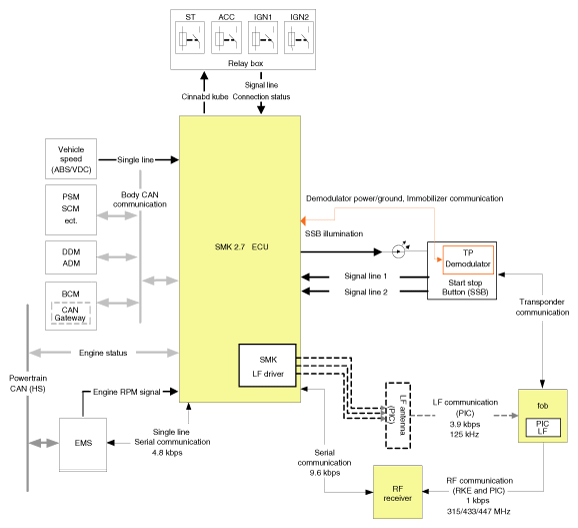

Fig 1: Button Engine Start System - Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
