Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

IG KEY "ON" & Engine "OFF".
Erase DTC after connecting GDS.
Check Smart key status if DTC is retrieved.

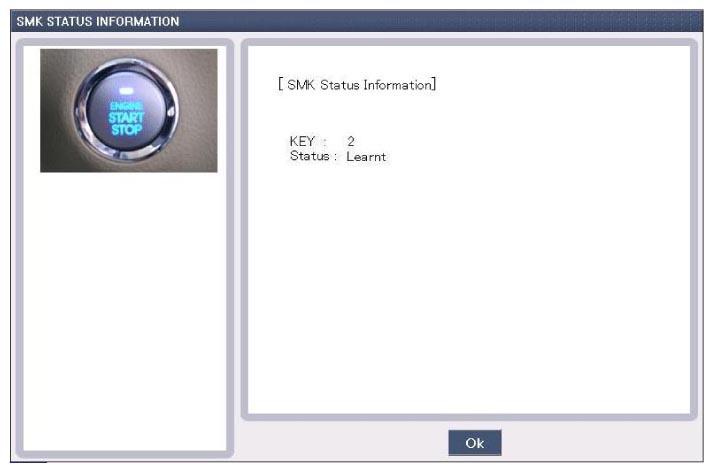

Fig 1: Screen Display - 2 Key Registered, Smart Key Learnt Status
Courtesy of KIA MOTORS AMERICA, INC.
Is the Smart key PCM learnt status?
YES
- Fault is intermittent caused by poor contact in Smart key PCM and/or PCM's connector or was repaired and Smart key PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then proceed to "Verification Of Vehicle Repair " procedure.
NO
- Proceed to Component Inspection procedure below.
