Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the door trim.

    (Proceed to Body - "FRONT DOOR TRIM ")

    (Proceed to Body - "REAR DOOR TRIM ")

  3. Remove the memory power seat control switch (IMS) (B) after disconnecting the connector (A) and loosening screws.
    Fig 1: Loosening Memory Power Seat Control Switch Screws
    G11801733Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Loosen the mounting screw (A) of latch cover.

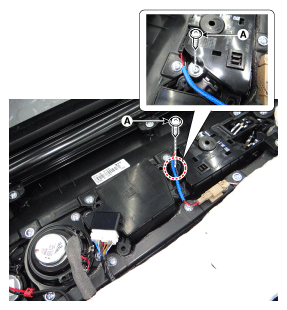

    Fig 2: Loosening Mounting Screw Of Latch Cover
    G11801734Courtesy of KIA MOTORS AMERICA, INC.
