Valve Body Flow

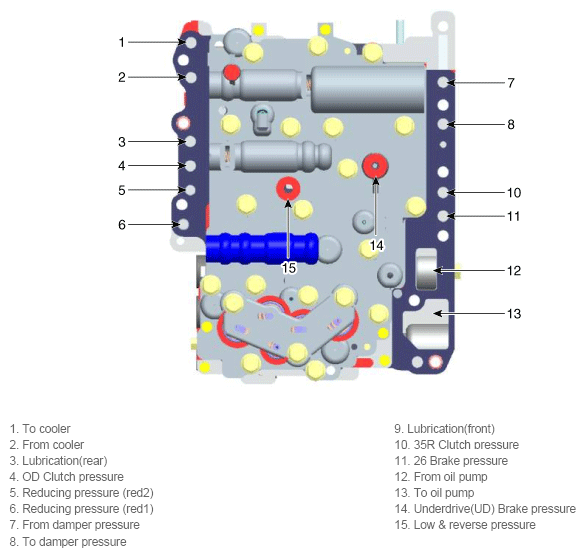

Fig 1: Valve Body Assembly Flow Diagram

G11795178

Courtesy of KIA MOTORS AMERICA, INC.
