Hydraulic System - 1.6L
>>
Components And Components Location
>>
Components Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components Location

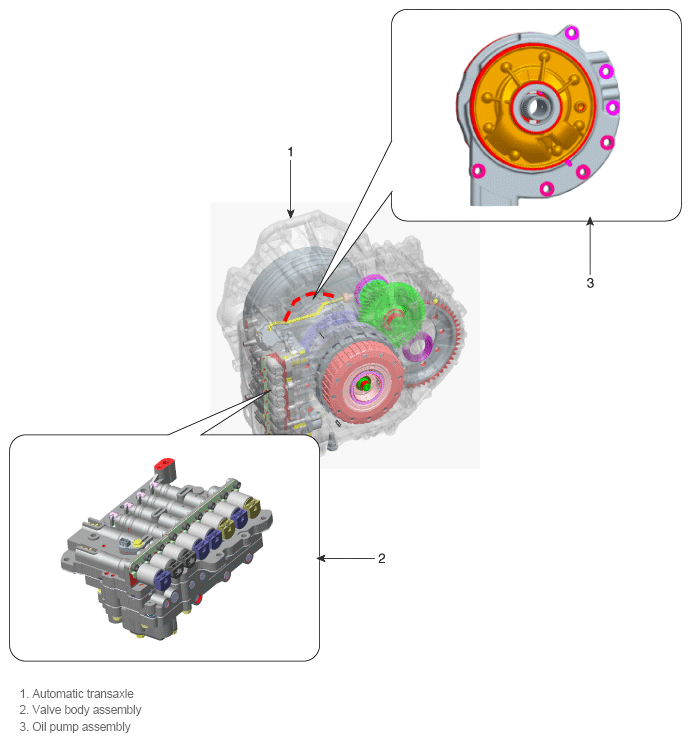

Fig 1: Hydraulic System Components Location
Courtesy of KIA MOTORS AMERICA, INC.

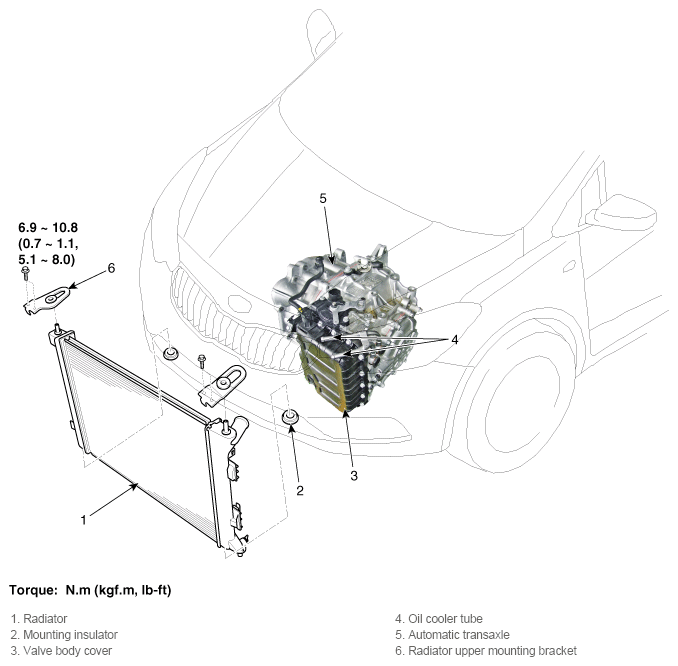

Fig 2: Locate Automatic Transaxle Hydraulic Parts
Courtesy of KIA MOTORS AMERICA, INC.
