Components Location

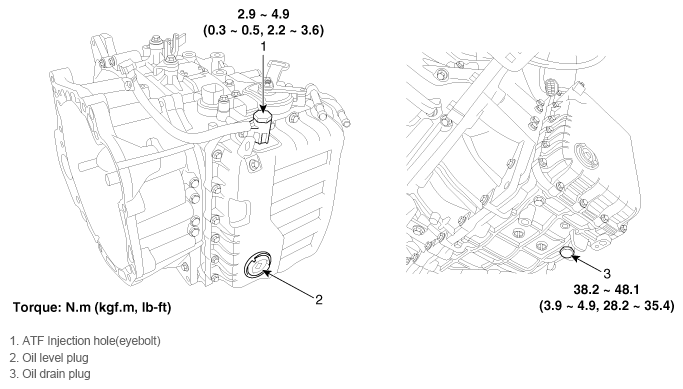

Fig 1: Locate Automatic Transaxle System Fluid Injection Hole, Oil Drain And Oil Level Plug
G11795171Courtesy of KIA MOTORS AMERICA, INC.
