Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 2.0L (1 Of 3)
>>
DTC P0076: Intake Valve Control Solenoid Circuit-Low (Bank 1)
>>
Specification
>>
Signal Waveform & Data
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Signal Waveform & Data

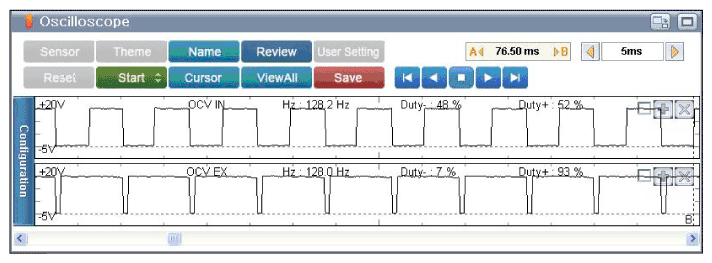

Fig 1: Scantool Display - Normal Waveform Of OCV At Idle
Courtesy of KIA MOTORS AMERICA, INC.

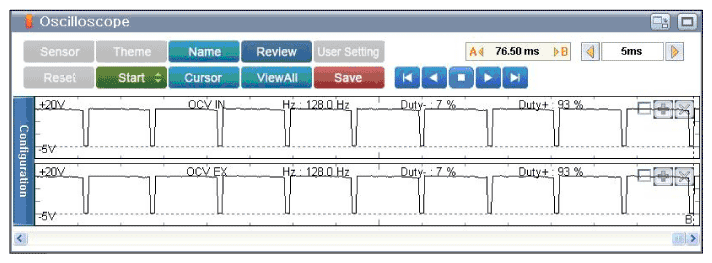

Fig 2: Scantool Display - Normal Waveform Of OCV At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
