Section 17 (Charging System - 1.6L): Battery: Troubleshooting

WARNING: This page is about a different variant/trim than selected.

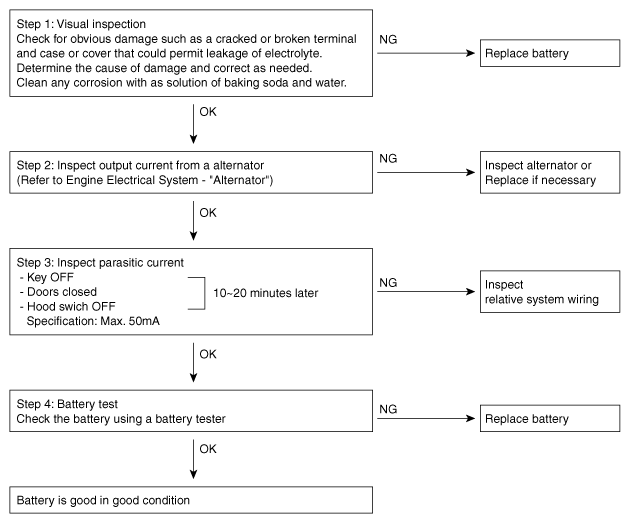

Fig 1: Battery Troubleshooting Chart

Courtesy of KIA MOTORS AMERICA, INC.
