Forte LX, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis - 1.8L (2 Of 3)
>>
DTC P050B: Cold Start Ignition Timing Performance
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

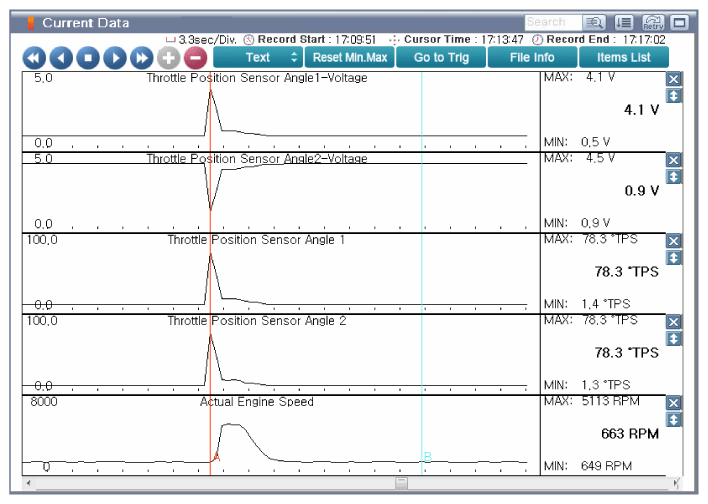

Fig 1: Screen Display - ETC Motor Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
