Rear Brake Pads

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel & tire.
Tightening Torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
Release the parking brake lever and parking brake cable is loose.
Loosen the guide rod bolt (B) and then remove the rear caliper body (C).

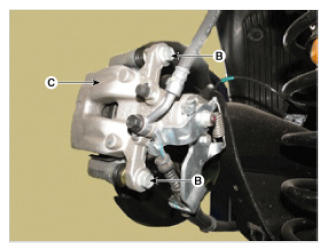

Fig 1: Guide Rod Bolt & Rear Caliper Body
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Where necessary prevent the guide rods from rotating with an appropriate wrench.
- Be careful not to damage the dust covers.
Replace pad retainers (C) and brake pads (B) in the caliper carrier (A).

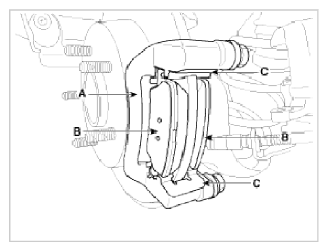

Fig 2: Pad Retainers, Brake Pads & Caliper Carrier
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Clean the pad retainer surface at the caliper bracket.
- Inspect the piston boots for damage and replace if necessary.
- Check the smooth action of the guide rods, and their dust covers for damage.
Rotate the caliper piston and push the direction of the arrow.

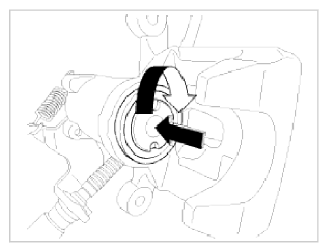

Fig 3: Installing Caliper Piston
Courtesy of KIA MOTORS AMERICA, INC.
Place the caliper body (C) on the caliper carrier and tighten the guide rod bolts (B).
Tightening Torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

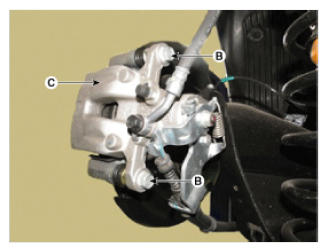

Fig 4: Caliper Body & Guide Rod Bolts
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Assemble the caliper body so that the piston groove (A) is in-line with the pad center lobe (B).

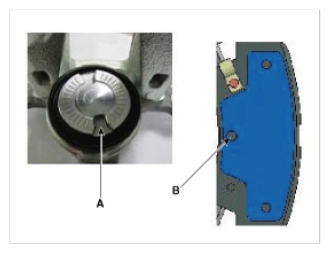

Fig 5: Piston Groove & Pad Center Lobe
Courtesy of KIA MOTORS AMERICA, INC.

* Make sure that the piston and pad are tightly attached.
Install the rear wheel & tire.
Tightening Torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
