Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft damper pulley.

    (Refer to "CRANKSHAFT DAMPER PULLEY ")

  2. Remove the front oil seal (A).

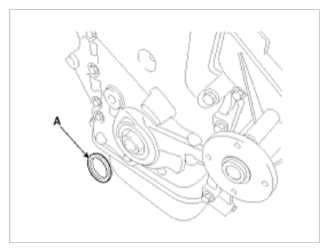

    Fig 1: Front Oil Seal
    G09745260Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply engine oil on the edge of new oil seal.
    NOTE: Remove any debris from the lip portion of the oil seal.
  4. Using the SST (09231-2E000), install a front oil seal (A).

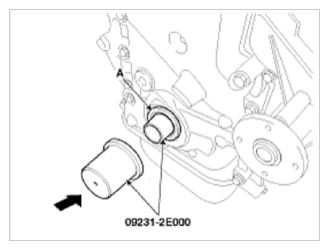

    Fig 2: Installing Front Oil Seal Using SST (09231-2E000)
    G09745261Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
  5. Install the crankshaft damper pulley.

    (Refer to "CRANKSHAFT DAMPER PULLEY ")
