Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5 and 2015 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
  2. Loosen the bolts (A).
  3. Loosen the drive belt tension by loosening the adjusting bolt (B).

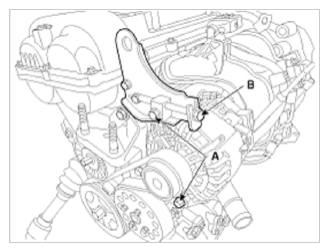

    Fig 1: Drive Belt Tension Adjusting Bolt
    G09746490Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the drive belt (A).

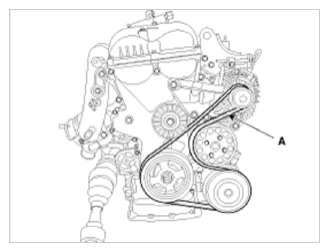

    Fig 2: Locating Drive Belt
    G09746491Courtesy of KIA MOTORS AMERICA, INC.
