Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
    Fig 1: Locate Accelerator Position Sensor Connector
    G11794016Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.

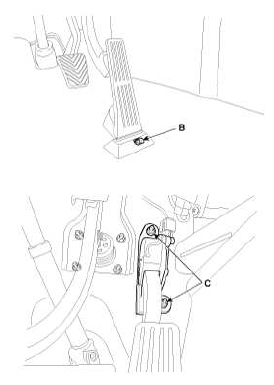

    Fig 2: Locate Accelerator Pedal Module
    G11794017Courtesy of KIA MOTORS AMERICA, INC.
