Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.

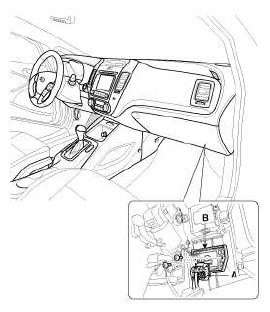

    Fig 1: Locate Power Mosfet Connector
    G11793058Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
