Troubleshooting
>>
Chart 1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart 1

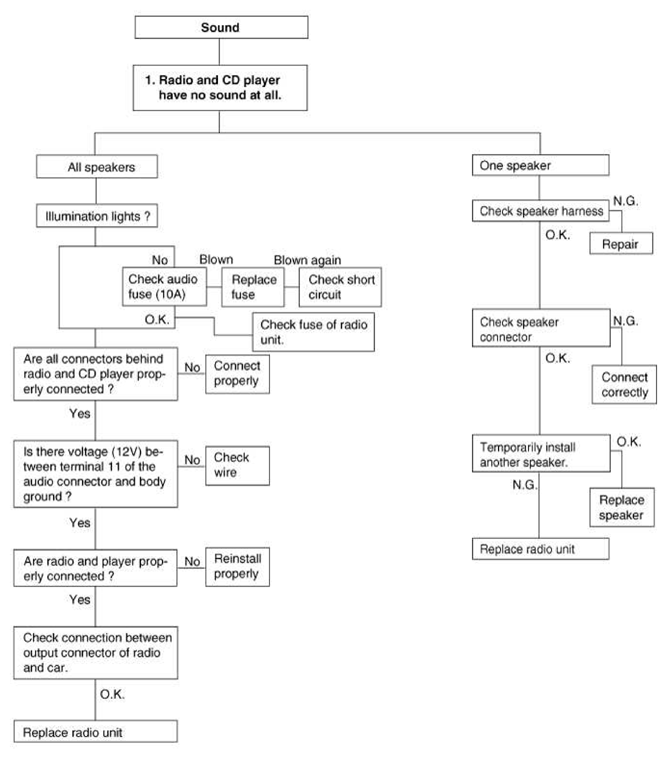

Fig 1: CD Player - Troubleshooting Flowchart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

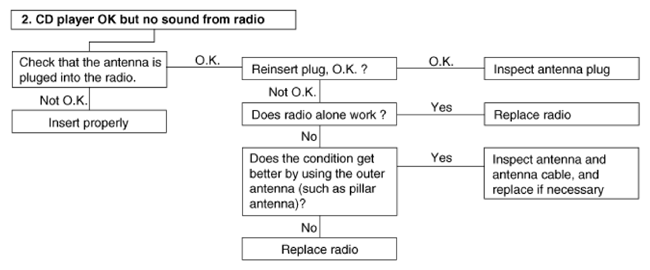

Fig 2: CD Player - Troubleshooting Flowchart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
