Engine Control System Diagnosis (2 Of 3)
>>
DTC P0221: Throttle Position Sensor 2 Signal Circuit Range/Performance
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

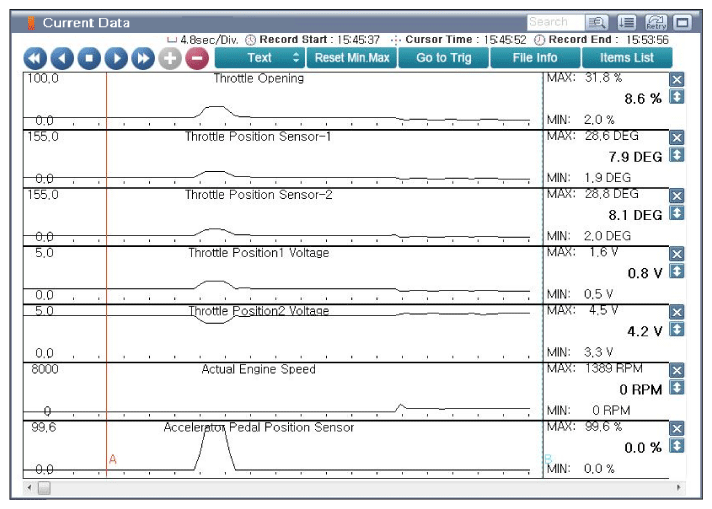

Fig 1: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Not Depressed With IG ON
Courtesy of KIA MOTORS AMERICA, INC.

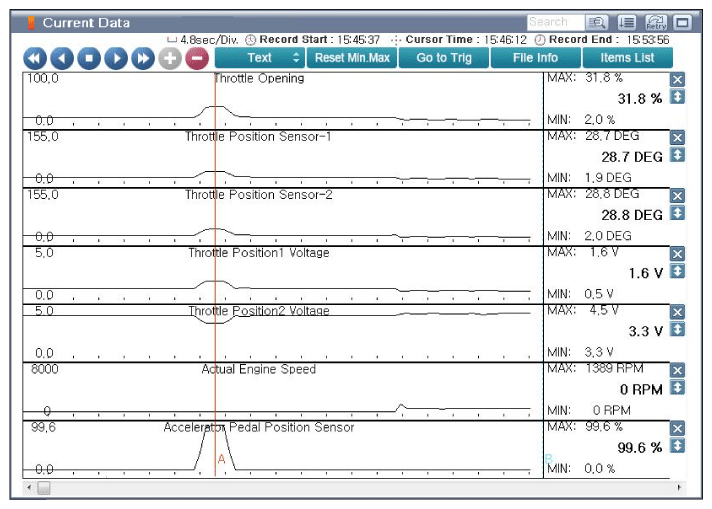

Fig 2: Screen Display - Normal Graph Of TPS1 & TPS2 With Acceleration Pedal Depressed With IG ON
Courtesy of KIA MOTORS AMERICA, INC.
