Monitor GDS Data

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "ON" (Power Button LED "Red")
  2. Erase DTC after connecting GDS.
  3. Check Smart key status in "Vehicle S/W Management", if DTC is retrieved.

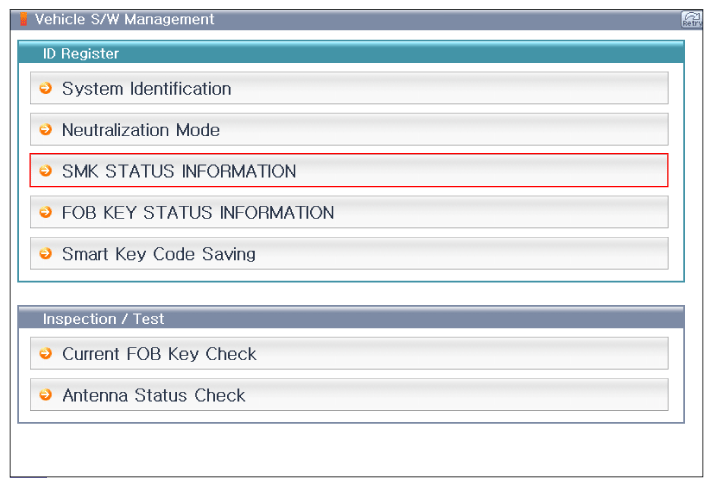

    Fig 1: Screen Display - Vehicle S/W Management
    G10748027Courtesy of KIA MOTORS AMERICA, INC.

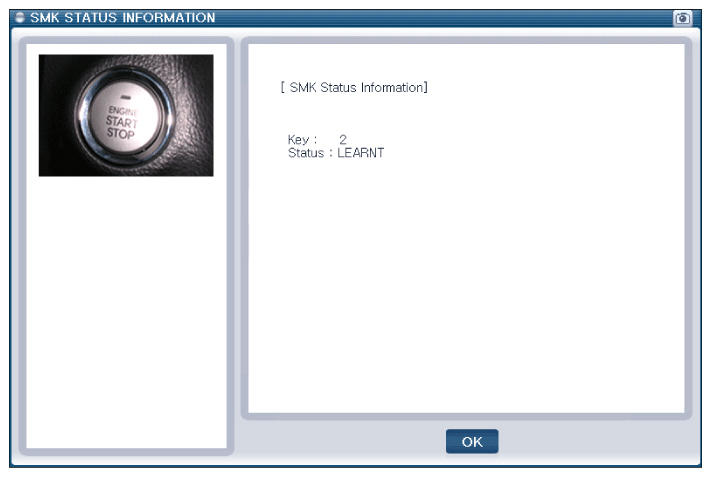

    Fig 2: Screen Display - SMK Status Information
    G10748028Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the Smart key unit learnt status?

    YES

    • Fault is intermittent caused by poor contact in Smart Key unit and/or VMCU's connector or was repaired and Smart Key unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
