Direct Measurement

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Transmission and Reception are executed by one sensor.

(FL, FCL, FCR, FR, RL, RCL, RCR, RR each sensor execution)

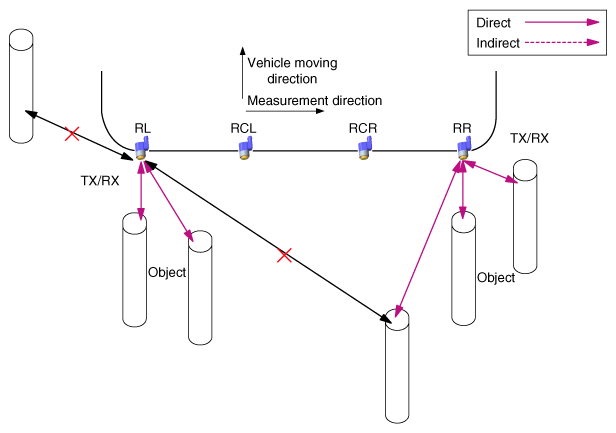

Fig 1: Sensor Distance Measurement (Direct)
G11937928Courtesy of KIA MOTORS AMERICA, INC.
