Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to scratch the body surface.
  1. Loosen the side sill moulding mounting screws.
  2. Using a screwdriver or remover, remove the side sill moulding (A).

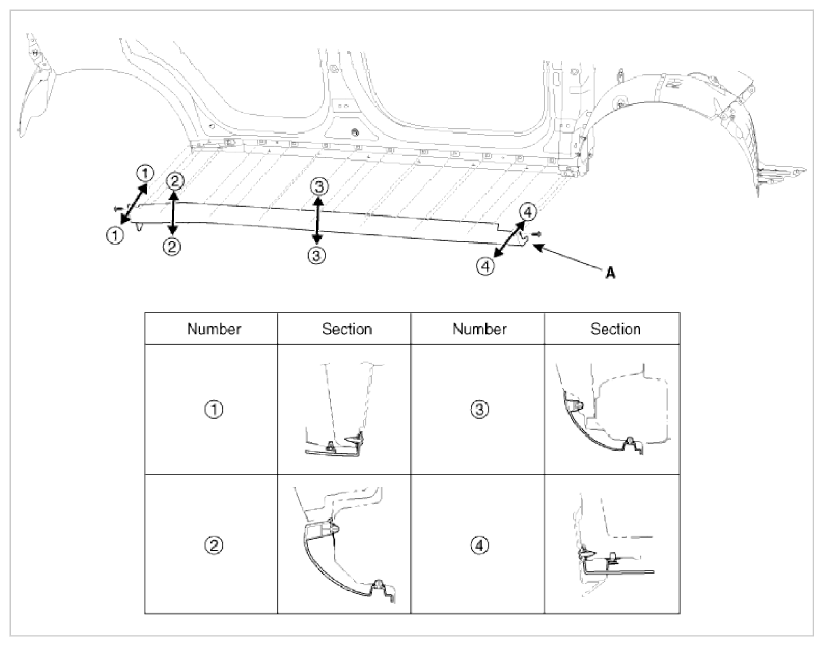

    Fig 1: Side Sill Moulding & Clip Locations
    G09778029Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    • Replace any damaged clips.
