Component Location

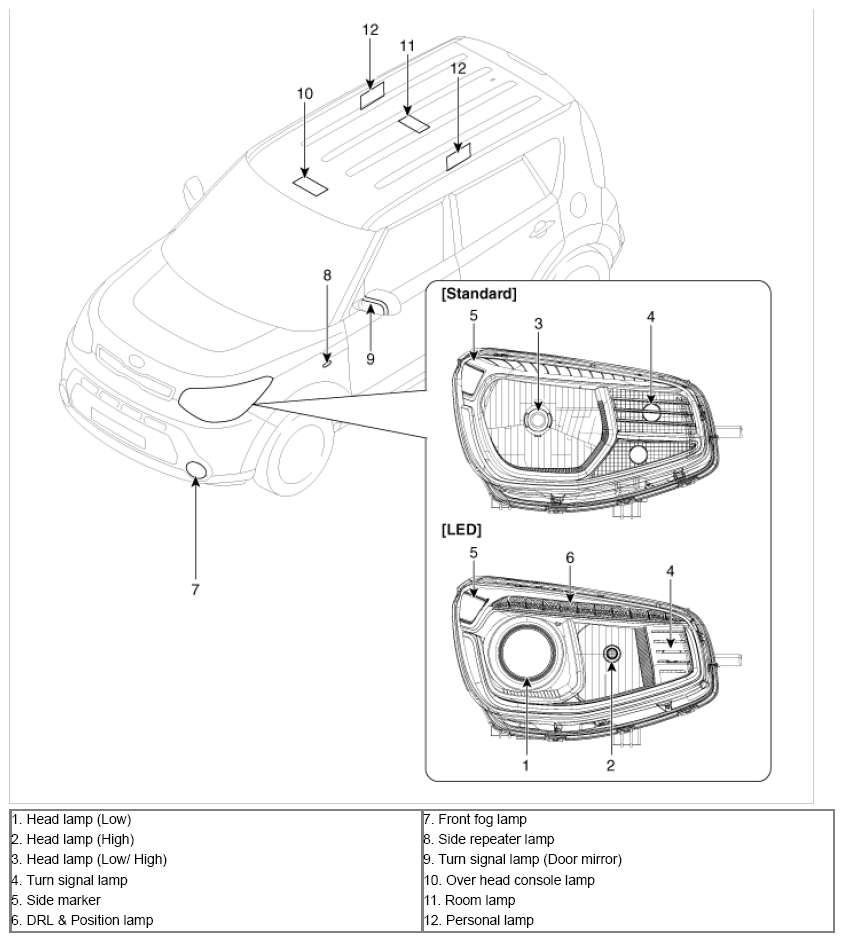

Fig 1: Lighting System Component Location (Front)
Courtesy of KIA MOTORS AMERICA, INC.

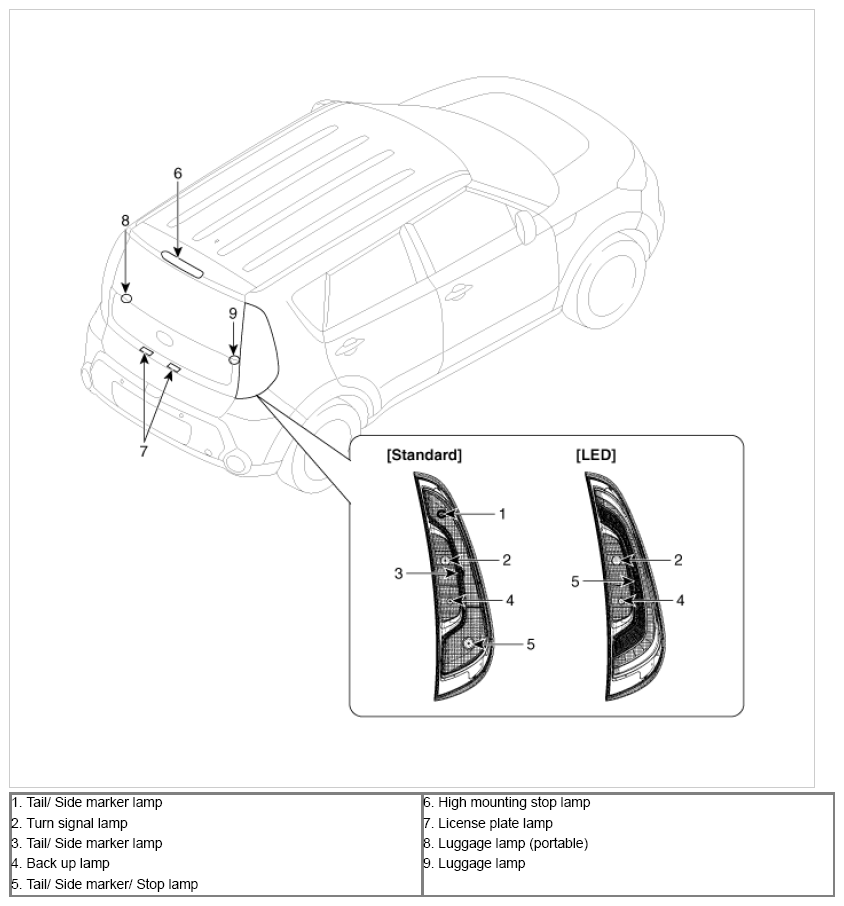

Fig 2: Lighting System Component Location (Rear)
Courtesy of KIA MOTORS AMERICA, INC.
