Initialization Of Automatic Resolver Offset Calibration

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF" and connect the GDS to the Data Link Connector.
P range & Turn ignition switch "ON" (Power button LED "Red"), Select "Vehicle S/W Management"
Perform the "Initialization of Automatic Resolver Offset Calibration".

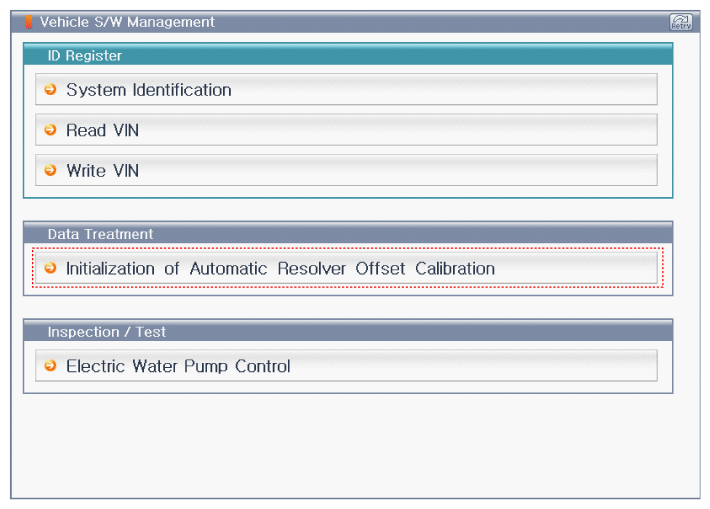

Fig 1: Screen Display - Initialization Of Automatic Resolver Offset Calibration (1 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

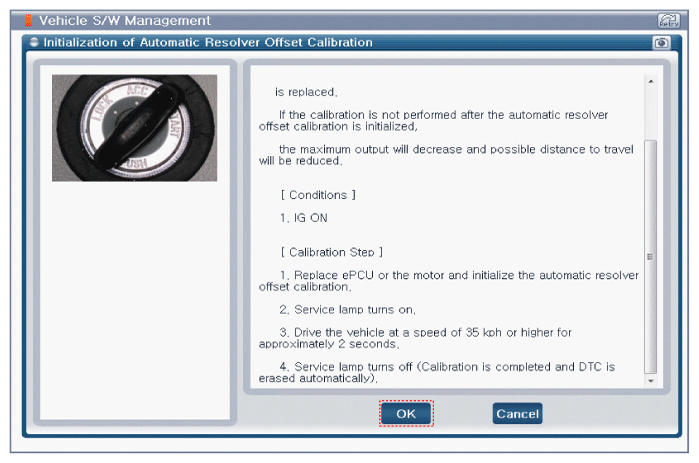

Fig 2: Screen Display - Initialization Of Automatic Resolver Offset Calibration (2 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

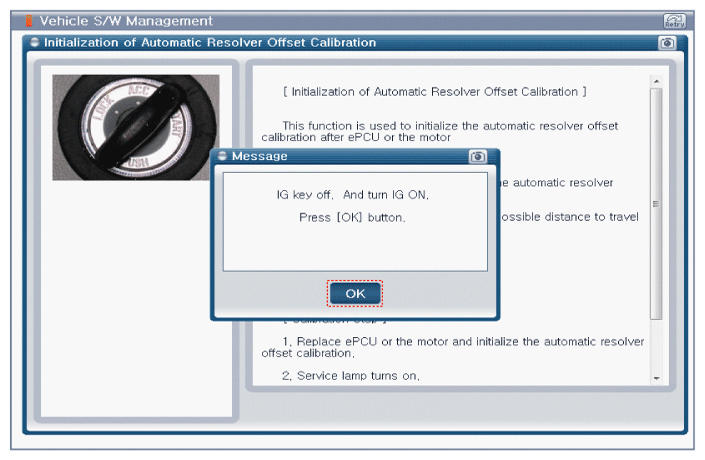

Fig 3: Screen Display - Initialization Of Automatic Resolver Offset Calibration (3 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Initialization Of Automatic Resolver Offset Calibration (4 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

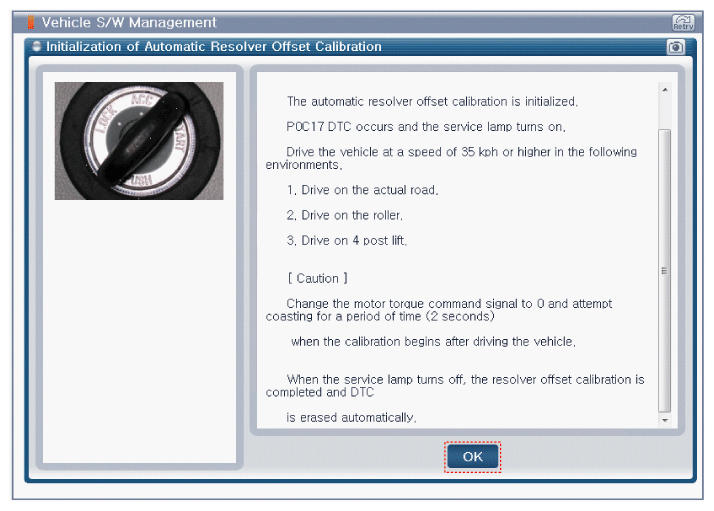

Fig 5: Screen Display - Initialization Of Automatic Resolver Offset Calibration (5 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - Initialization Of Automatic Resolver Offset Calibration (6 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
