Manifold Absolute Pressure Sensor (MAPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

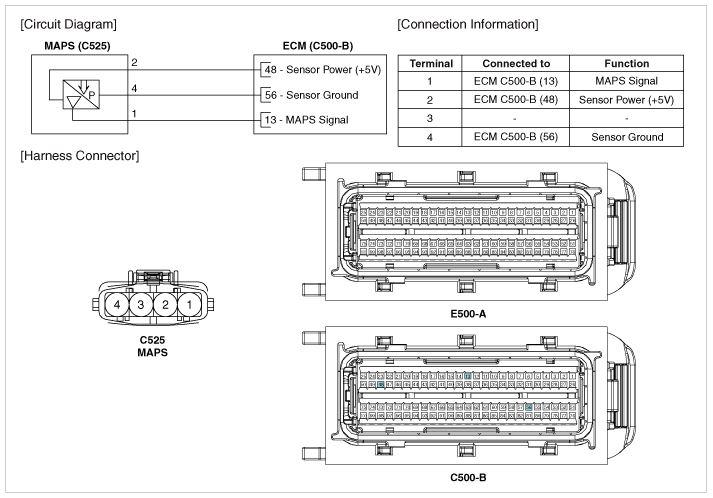

Circuit Diagram
Fig 1: Pressure Versus Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
