Kia
>>
2015
>>
Sorento EX, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - A6LF2
>>
Torque Converter Control Solenoid Valve (TCON_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

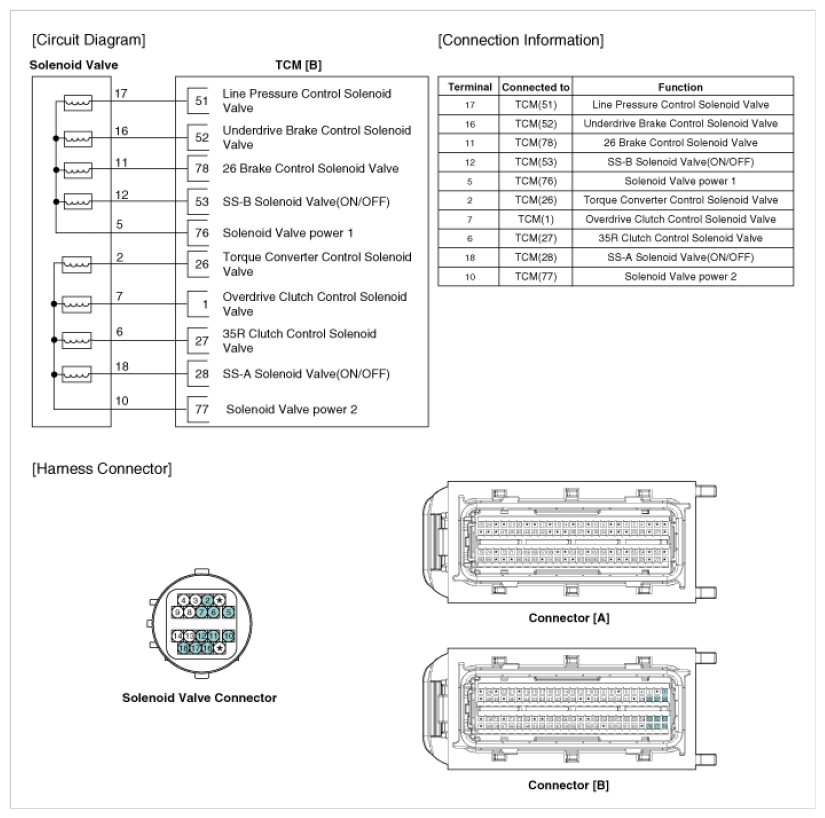

Fig 1: Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
