Engine Control System Diagnosis (1 Of 4)
>>
DTC P0082: Intake Valve Control Solenoid Circuit-Low (Bank 2)
>>
Specification
>>
Signal Waveform & Data
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Signal Waveform & Data

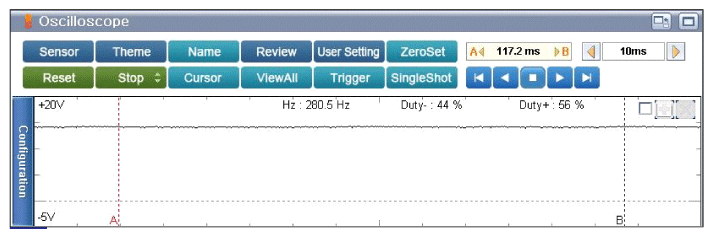

Fig 1: Screen Display - Signal Waveform Of OCV At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.

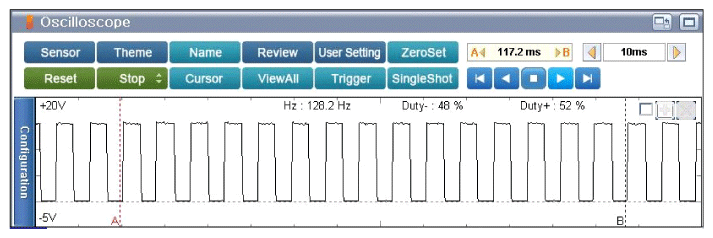

Fig 2: Screen Display - Signal Waveform Of OCV At Approx (2000rpm)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
