What Is Torque Sensor?

The rack & pinion gear connected to the tire supporting the actual weight of vehicle constrains the revolving of universal joint when the driver turns the steering wheel. At this time, a kind of spring, the torsion bar between the column output shaft and input shaft is twisted.

In other words, this sensor detects the driver's intention of steering by measuring the amount of torsion (Steering angle)

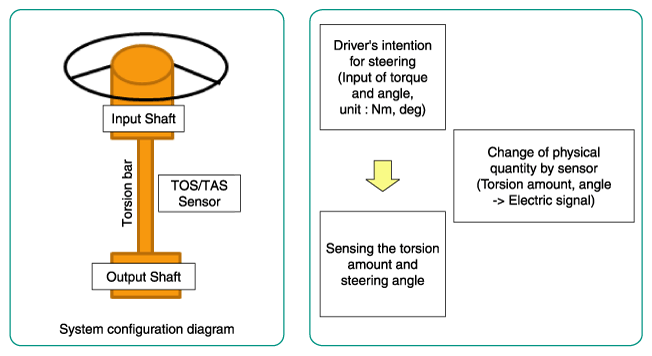

Fig 1: Torque Sensor System Configuration Block Diagram

Courtesy of KIA MOTORS AMERICA, INC.

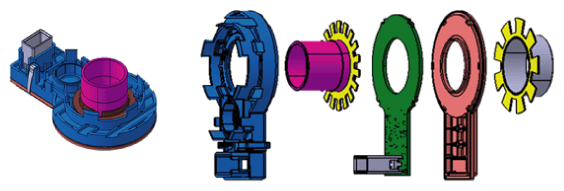

Fig 2: Exploded View Of Torque Sensor

Courtesy of KIA MOTORS AMERICA, INC.

• Type: Non contacting type electromagnetic induction style
• Operation voltage: 5V
• Output signal: Digital, 2 channel
• Size: Ø 56mm x 29mm(H)
