Repair Procedure: Inspection

Inspection of the Smart Tailgate using GDS

1. Check up through GDS analyzing device, the failure code, monitoring on entered value, and by forcefully operating actuator and self diagnosis, failed area can be detected promptly.
2. Select the vehicle and menu to analyze the Smart Tailgate module.
3. Select the "STM" to check the DTC of the power trunk module.
4. Select the "Service Data" to see the current status in accordance with the input/output value. Offer status of the each switch and sensor.

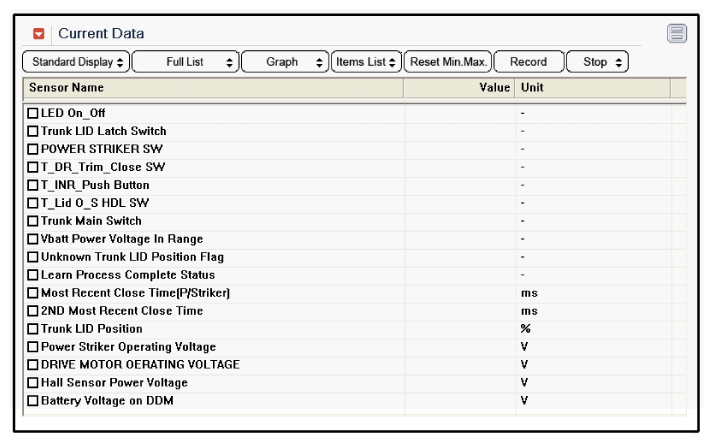

   Fig 1: Display - Smart Tailgate Service Data Screen

   Courtesy of KIA MOTORS AMERICA, INC.
