Signal Waveform & Data

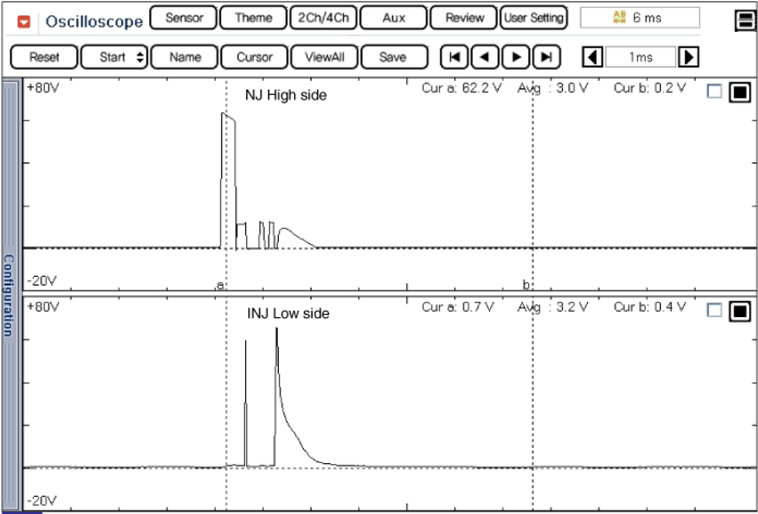

Fig 1: Display - Injector High And Low Side Voltage Normal Signal Waveform (At Idle)
G08324756Courtesy of KIA MOTORS AMERICA, INC.
