Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Disconnect the Electric Oil Pump (EOP) connector (A).

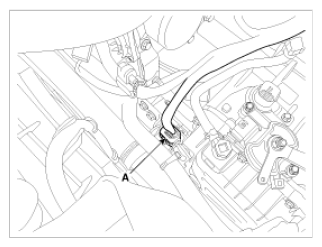

Fig 1: Identifying Electric Oil Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover (A) after lifting the vehicle with lift.

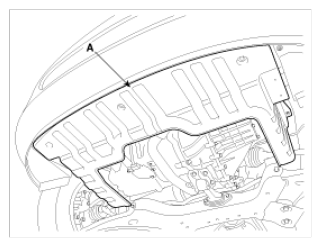

Fig 2: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the Electric Oil Pump (B) after removing the bolts (A-4ea).
Tightening torque:

19.6 ~ 25.5 N.m (2.0 ~ 2.6 kgf.m, 14.4 ~ 18.8 lb-ft)

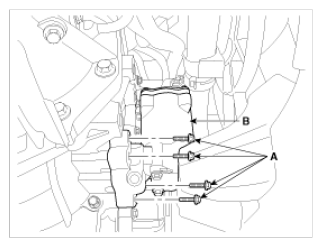

Fig 3: Identifying Electric Oil Pump And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Electric Oil Pump
Courtesy of KIA MOTORS AMERICA, INC.
