Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.
- Remove the canister. (Refer to Canister
)
- Support the fuel tank with a jack and then remove the right fuel tank band (A).
Courtesy of KIA MOTORS AMERICA, INC.
- Make a gap for removing the fuel tank pressure sensor by lowering the jack.

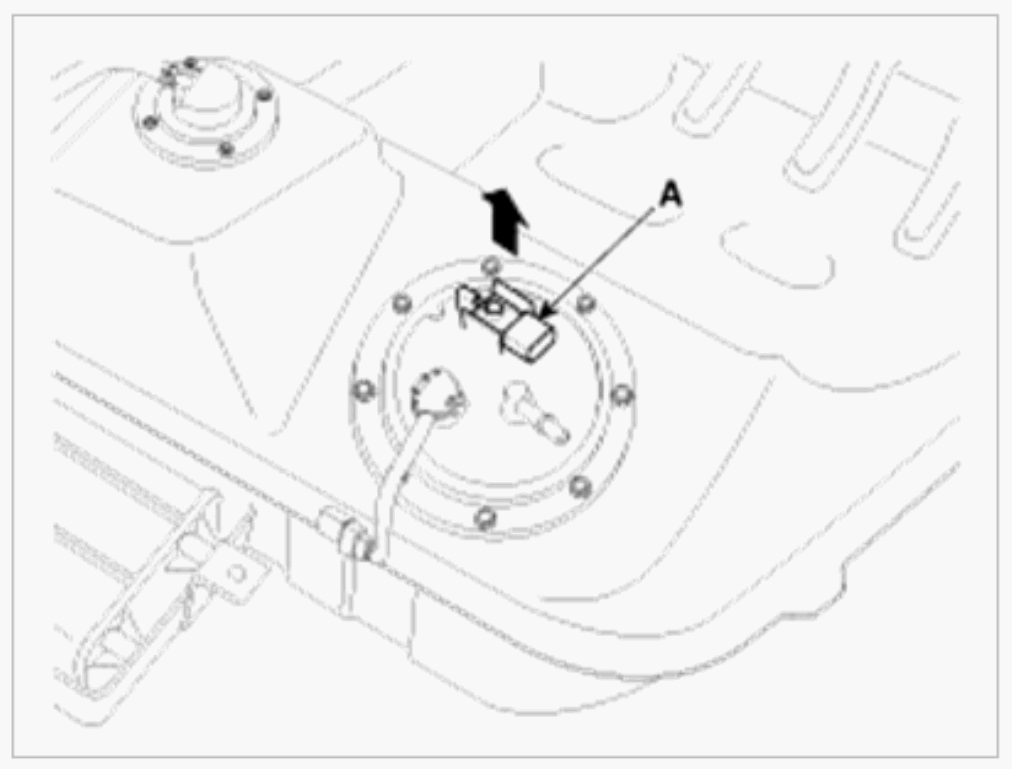

- Remove the fuel tank pressure sensor (A) after releasing the hooks.
Courtesy of KIA MOTORS AMERICA, INC.
