Engine Control System - Optima HEV
>>
Crankshaft Position Sensor (CKPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

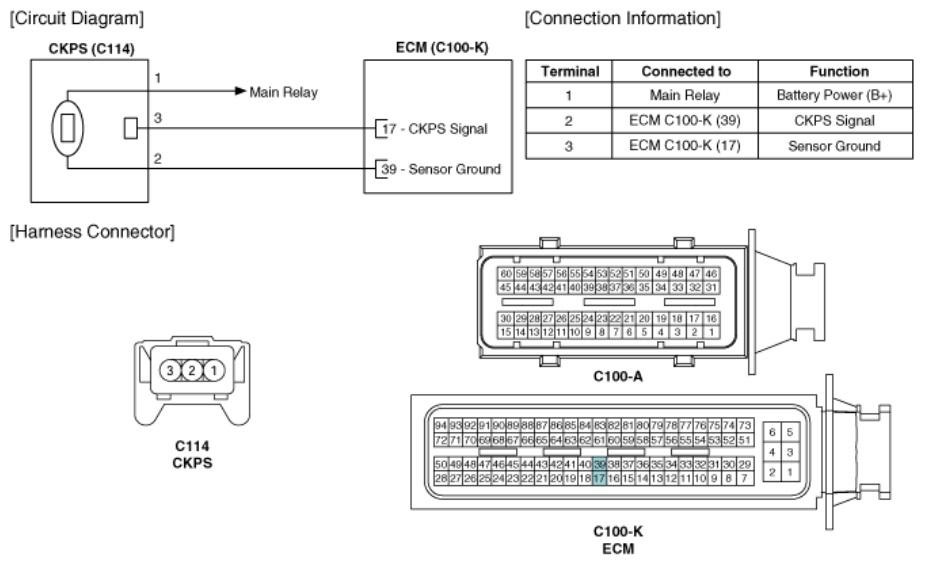

Fig 1: CKPS Circuit Diagram With Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
