Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad.

    (Refer to "CRASH PAD ")

  3. Disconnect the Intake actuator connector (A)
  4. Loosen the mounting screw and then remove the intake actuator (B).

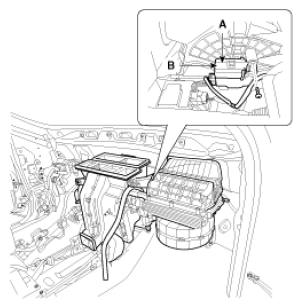

    Fig 1: Identifying Intake Actuator And Connector
    G08313210Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
