Components And Components Location: Components

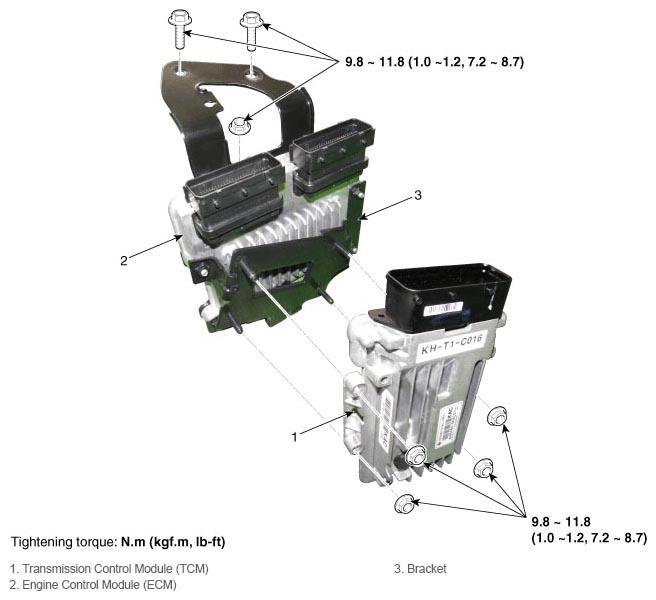

Fig 1: Identifying Transmission Control Module Components With Torque Specifications
G10714050Courtesy of KIA MOTORS AMERICA, INC.
