Component Location

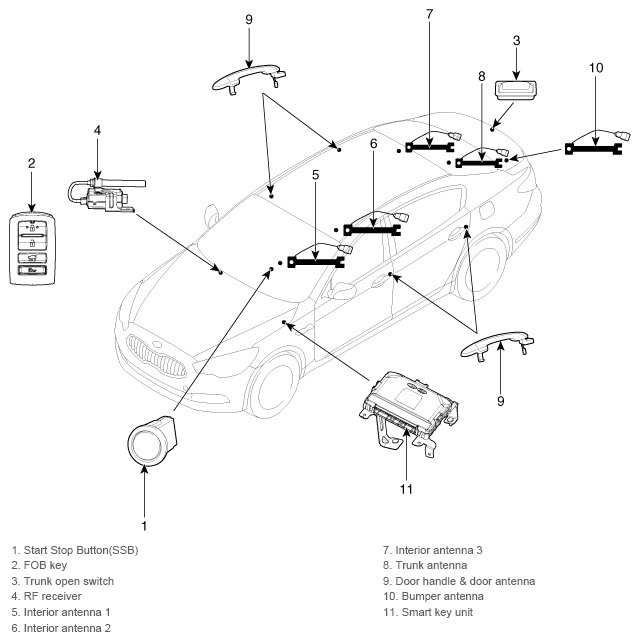

Fig 1: Identifying Button Engine Start System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
