Components And Components Location: Components

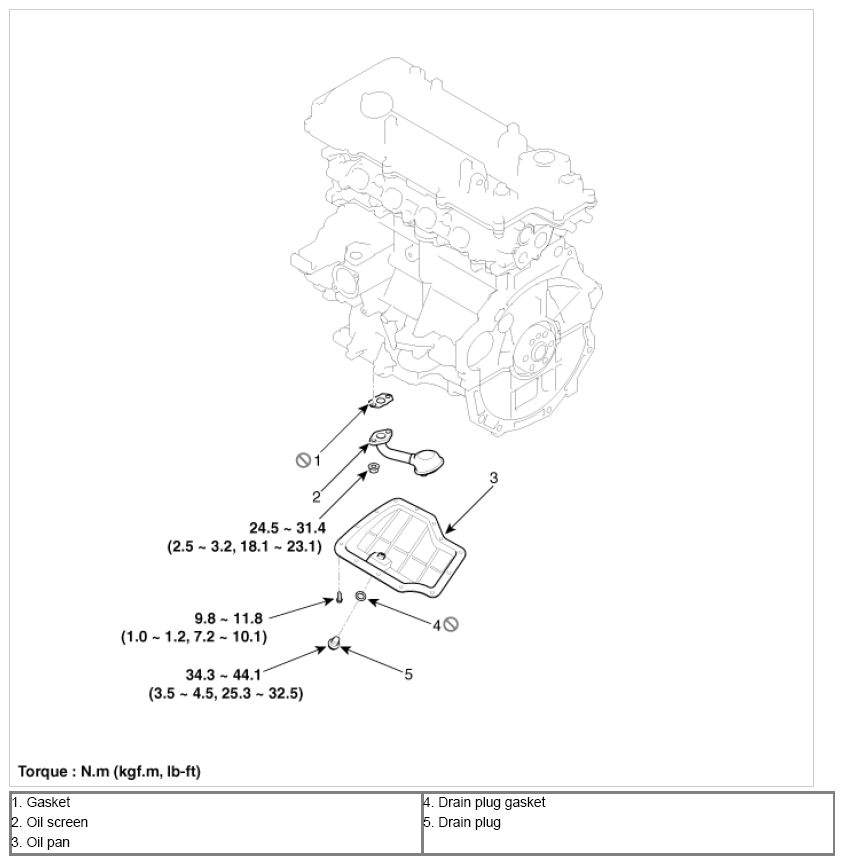

Fig 1: Oil Pan Replacement Components With Torque Specifications
G09746748Courtesy of KIA MOTORS AMERICA, INC.
