OEM Connector End Views (Main Harness) -- 1.6L
>>
Connector End Views
>>
Smart Key Control Module Connector End View (M13-A)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Smart Key Control Module Connector End View (M13-A)

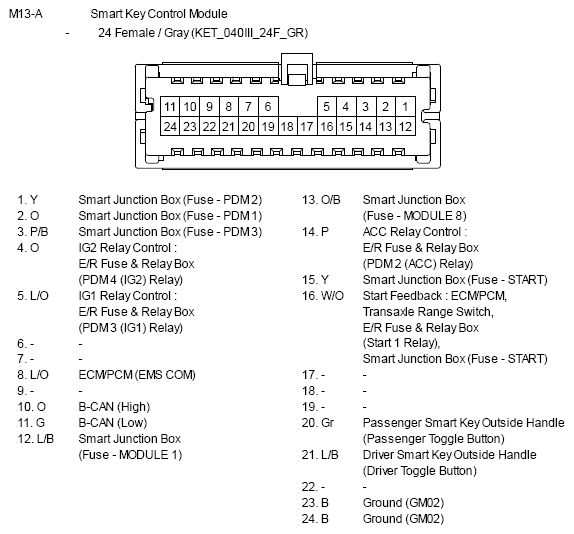

Fig 1: Smart Key Control Module Connector End View (M13-A)
