Repair Procedures: Inspection
- Measure a resistance of NTC and Heated pad.
- NTC resistance - 10.0 kΩ ± 10% (25°C)
- Heated pad resistance - 1.88 Ω ± 10%
- Measure a temperature.
- The temperature of wheel surface grip must rise from -20°C to 20°C within 6 minute
- The temperature of wheel surface grip must keep 38°C ± 4°C after 25 minute

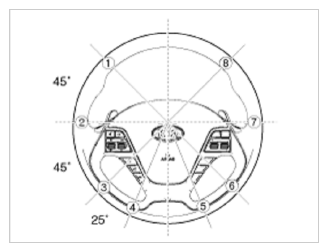

- At that time switch on, all measure point (1~8)
Courtesy of KIA MOTORS AMERICA, INC.
