Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5 and 2015 Kia Forte Koup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery (-) terminal (A) and then (+) terminal (B).

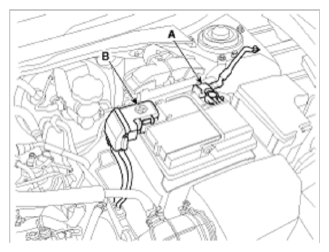

    Fig 1: Battery Terminals
    G09746857Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the air duct and air cleaner assembly.

    (Refer to "AIR CLEANER ")

  3. Remove the battery mounting bracket and the insulation pad, and then remove the battery (A).

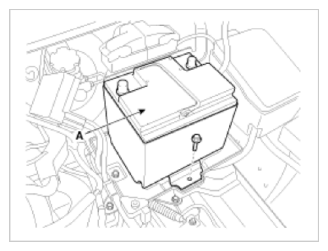

    Fig 2: Battery
    G09746858Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ECM connector (A), and then remove ECM (B) after removing the bolts/nut.
  5. Remove the battery tray (C) after removing the bolts.

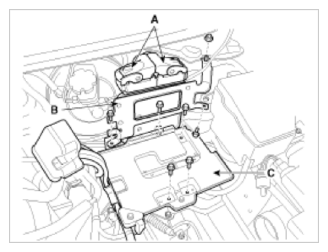

    Fig 3: ECM Connector & Battery Tray
    G09746859Courtesy of KIA MOTORS AMERICA, INC.
