Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad side switch assembly (A).
Courtesy of KIA MOTORS AMERICA, INC.

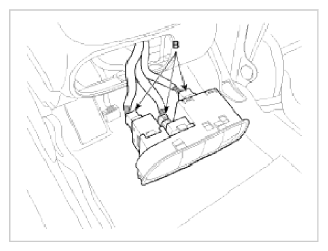

- Disconnect the crash pad switch connector (B).
Courtesy of KIA MOTORS AMERICA, INC.
- Check the continuity between the switch terminals as the ESC OFF switch is engaged.
Courtesy of KIA MOTORS AMERICA, INC.
