Diagnosis With GDS
- It will be able to diagnose defects of power window with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
- Select model and "BCM".
- Select the "SJB" to check.

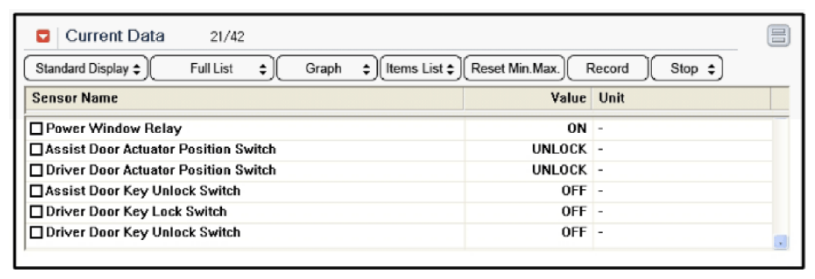

- Select "Current data", if you will check current data of power window system. It provides input/output status of SJB.
Courtesy of KIA MOTORS AMERICA, INC.

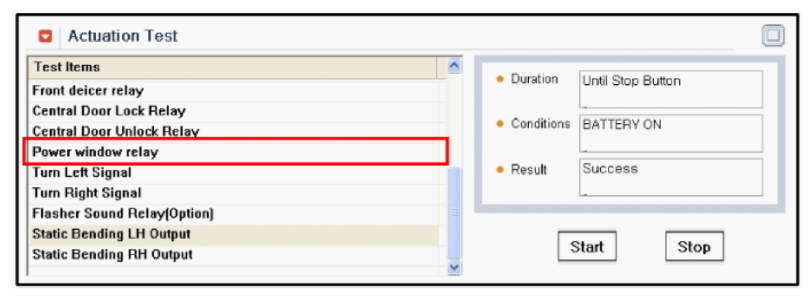

- If you will check the power door lock operation forcefully, select "Actuation test".
Courtesy of KIA MOTORS AMERICA, INC.
