Trunk Antenna

Disconnect the negative (-) battery terminal.

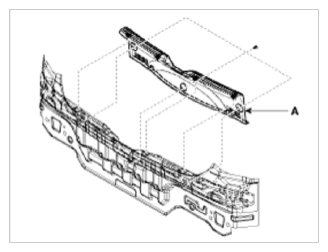

Using a clip remover, detach the clips, and remove the rear transverse trim (A).

Fig 1: Rear Transverse Trim
Courtesy of KIA MOTORS AMERICA, INC.

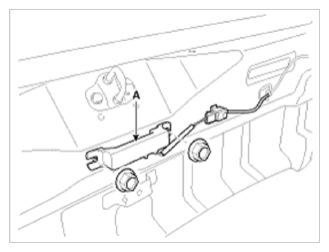

Disconnect the connector, then remove the trunk antenna (A) with loosening 2 nuts.

Fig 2: Trunk Antenna And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
