Tire Pressure Monitoring System
>>
Troubleshooting
>>
TPMS Inspection Method
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
TPMS Inspection Method

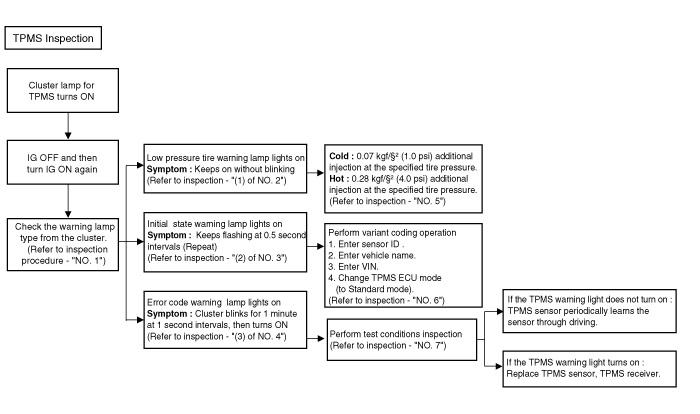

Fig 1: TPMS Flowchart
